9710020320

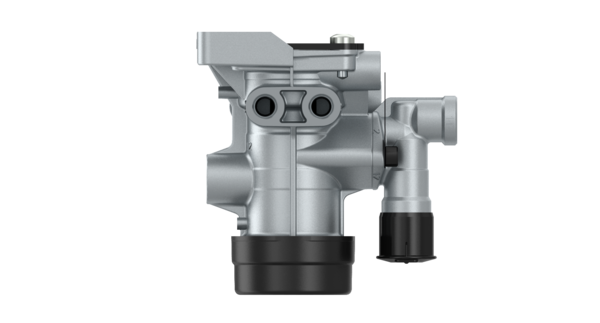

Relay Emergency Valve with Release Valve

971 002 0320

Combination of 9710020300 and release valve 9630010130

• Distance between holes
  71 mm
• Max. operating pressure
  10.0 bar
• Mounting
  2x Ø 11.0 mm
• Port thread 1
  M22 x 1.5 JED-152
• Port thread 12
  M22 x 1.5 JED-152
• Port thread 2
  2x M16 x 1.5 JED-152 / 1x Flange M16 x 1.5 JED-152
• Port thread 3
  Silencer
• Port thread 4
  M16 x 1.5 JED-152
• Product category
  Device
• Range of adjustment
  0.7 bar
• Technical specification
  OE specification
• Temperature range
  -40°C to +65°C
• Type
  Only Emergency valve
• Size (mm x mm x mm)
  167 x 162 x 117
• UPC
  193133534716
• Weight (kg)
  1.403
• Weight (lb)
  3.093
